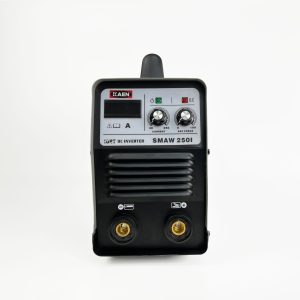

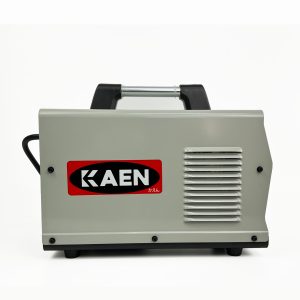

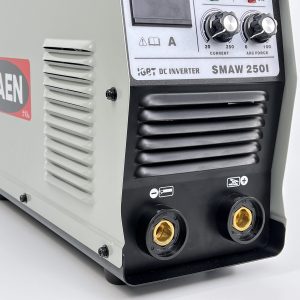

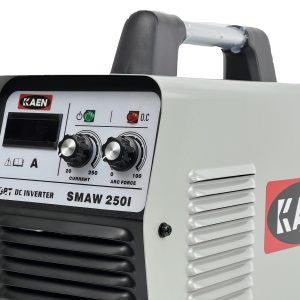

KAEN SMAW250I Welding Machine

RM1,800.00

  • Advanced (IGBT)inverter technology
  • Light, Compact, Easy to operate
  • Output characteristics is similar with AC welder characteristics ; strong arc performance, good stiffness
  • High maximum output voltage fluctuation

Out of stock

FEATURES

  • Delivers an excellent arc performance;
  • Extra light, compact and portable design;
  • Over-current protection and overload protection to ensure safety;
  • Ideal for light- and medium-duty daily welding applications;
  • Closed-loop feedback control, built-in fan and ultra-low voltage intelligent regulator, stable output voltage, easy to start in unstable voltage area.
  • An advanced IGBT inverter technology with a high duty cycle and an excellent ignition voltage make the welder more reliable and less prone to damage or failure.
  • Energy-saving and highly efficient. The inverter welding machine’s switch also operates fast and uses less energy to do the final operation.
  • An inner cooling fan protects the welding machine from overheating contributing to the life expectancy of the device.
  • Ideal for welding stainless steel, alloy steel, carbon steel, and other metal materials.

CATALOGUE

Download Here

Technical Specification

Input Voltage (V)

240V

Frequency (HZ)

AC240V±15%

Rated Input Power (A)

7.5

Current Adjust Range (A)

22-250

40℃ 60% Duty Cycle Output

250

40℃ 100% Duty Cycle Output

195

No Load Voltage (V)

68

Efficiency (%)

85

Power Factor

0.93

Insulation Class

F

Housing Protection Class

IP21S

Applicable Welding Rod Diameter (mm)

2.5-4.0

Net Weight (kg)

7.5

Packing Dimension (mm)

380x155x300

1. SMAW250I Weding Machine
2. 3mtr welding cable with welding torch,
3. 3mtr welding cable with grounding clamp
4. 1X Owner’s Manual
